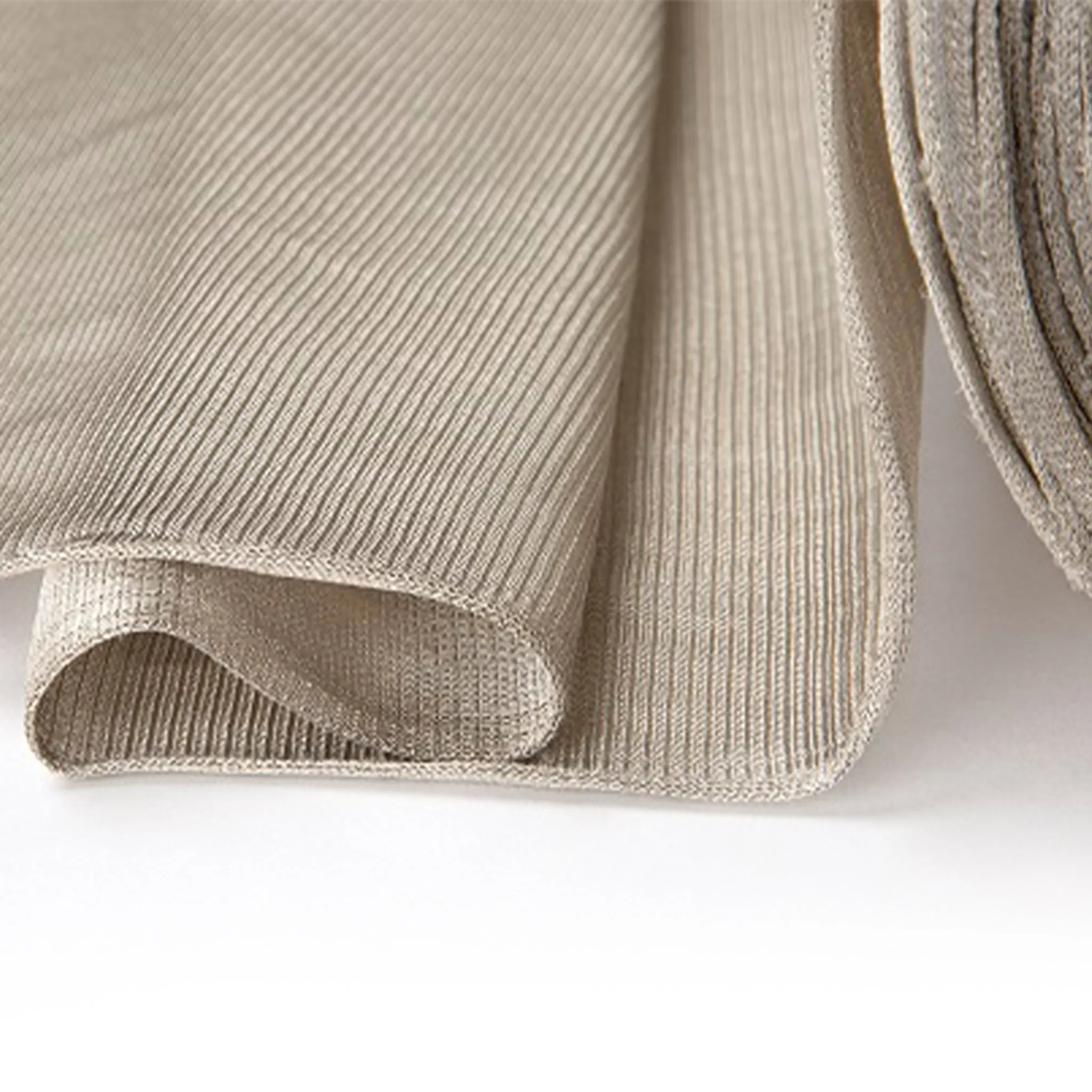

Shieldex® Balingen is a knitted fabric for HF LF shielding with excellent thermal conductivity. A typical application is base material for EMI/RFI application or base material for antimicrobial purposes.

*Note: To purchase a custom length of fabric, please add multiple quantities of the item to your cart. Each quantity counts a 1 linear foot in length. The amount ordered will be cut as a single piece unless specified otherwise.

Raw material: 100% Polyamide
Plating: 99% pure Silver
Surface Resistivity: < 0.6 Ω/
Attenuation: Average > 55 dB from 300MHz to 3GHz
Temperature Range: 30 ̊ C to 90 ̊ C
Weight: 62g/m2 ± 10%
Total Thickness: 0.26mm ± 10%
Width: 4.6ft ± 0.3ft

Compliance and Certification
RoHS
Reach
Öko-Tex® Standard 100
